Pan Philip Head Self Tapping Screw Zinc Plated
  • Pan Philip Head Self Tapping Screw Zinc PlatedPan Philip Head Self Tapping Screw Zinc Plated
  • Pan Philip Head Self Tapping Screw Zinc PlatedPan Philip Head Self Tapping Screw Zinc Plated
  • Pan Philip Head Self Tapping Screw Zinc PlatedPan Philip Head Self Tapping Screw Zinc Plated

Pan Philip Head Self Tapping Screw Zinc Plated

KOIN is one of the professional Pan Philip Head Self Tapping Screw Zinc Plated manufacturers and suppliers in China. Over the 15 years, we have been focusing on research in the field of Chipboard Screw, Self Tapping Screw, Self Drilling Screw, Machine Screw, Wood Screw, Drywall Screw. As the professional manufacture, we would like to provide you Pan Philip Head Self Tapping Screw Zinc Plated. And we will offer you the best after-sale service and timely delivery.

Send Inquiry    PDF DownLoad

Product Description

Characteristics and applications of Pan Philip Head Self Tapping Screw Zinc Plated

Pan Philip Head Self Tapping Screw Zinc Plated is a kind of threaded fastener that can self drill the matched female thread in the pre drilling of metal or non-metal materials.


Basic introduction

Pan Philip Head Self Tapping Screw Zinc Plated are mostly used for connection between thin metal plates(steel plates, saw plates, etc.).When connecting,the threaded bottom hole shall be made for the connected part first,and then the self tapping screw shall be screwed into the threaded bottom hole of the connected part. Since the thread surface of the self tapping screw has a high hardness (≥ hrc45),the internal thread can be tapped in the thread bottom hole of the connected part to form a connection.


Screw classification

The shape of screw head includes round head,flat head,semi countersunk head and countersunk head.Pan Philip Head Self Tapping Screw Zinc Plated are generally made of carburized steel,and the surface hardness of the material after heat treatment is not less than 45hrc.Compared with the threads of ordinary screws,when the same large diameter is used,the pitch is larger and the small diameter is slightly smaller,which has been standardized.


Screw action

Self tapping locking screws are also used for connection between thin metal plates.The thread is a common thread with an arc-shaped triangular cross-section,and the thread surface also has a high hardness.Therefore,when connecting,the screw can also tap the internal thread in the thread bottom hole of the connected part to form a connection.This screw is characterized by low screwing torque and high locking performance.It has better working performance than ordinary self tapping screws and can be used instead of machine screws.


The self tapping screws of the wallboard are used for the connection between the gypsum wallboard and the metal keel. The thread is double headed thread,and the thread surface also has high hardness(≥ hrc53),which can be quickly screwed into the keel without making prefabricated holes to form a connection.

The difference between self drilling self tapping screws and ordinary self tapping screws is that ordinary self tapping screws must go through two processes of drilling(drilling thread bottom hole)and tapping(including fastening connection) during connection;When the self drilling and tapping screws are connected, the two processes of drilling and tapping are combined and completed at one time.It first uses the drill in front of the screw to drill holes,and then uses the screw to tap (including fastening connection),saving construction time and improving construction efficiency.


Pan Philip Head Self Tapping Screw Zinc Plated and hexagon head self tapping screw are applicable to the occasion where the drill bit is allowed to be exposed.The hexagon head self tapping screw can follow a larger torque than the Pan Philip Head Self Tapping Screw Zinc Plated. Countersunk head and hexagon flower shaped self tapping screws are suitable for occasions where the nail head is not allowed to be exposed.Hexagon flower shaped self tapping screws can bear greater torque than countersunk head self tapping screws;Semi countersunk head tapping screws are suitable for situations where the nail head is allowed to be slightly exposed.


The process is controlled layer by layer,and everyone pays attention to quality.

(1) Quality:Products use high-quality materials to ensure quality. We have a professional QC team to inspect every project from production to packaging.And before leaving the factory,all specifications of products are sampled and tested to ensure stable quality.We guarantee the high-quality coating and low roughness of screws.


(2) Product features:Straight,not easy to break,sharp thread, good drill ability.


(3) Strict quality control:For each order,the quality control department will conduct strict inspection before delivery.Poor quality will be avoided in the door.


(4) Transportation:We have transportation department and freight forwarder,so we can ensure faster delivery and better protection of goods.


(5) Efficiency:Fast production time,only 260 minutes away from the nearest Shanghai port.


(6)Service:Customer service answers customer questions online 24 hours a day,and uses high-quality materials to ensure quality.

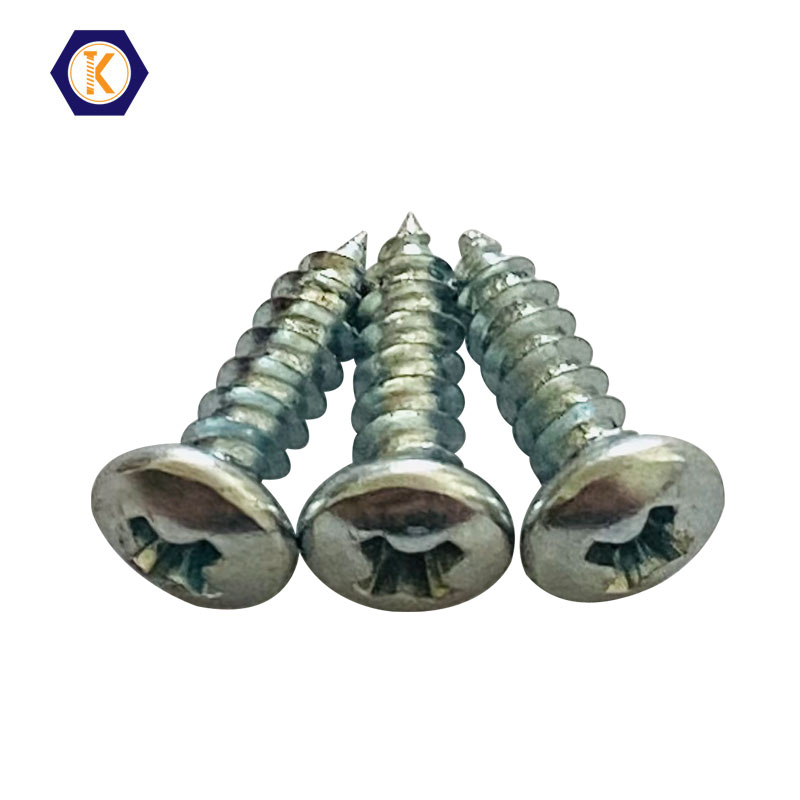

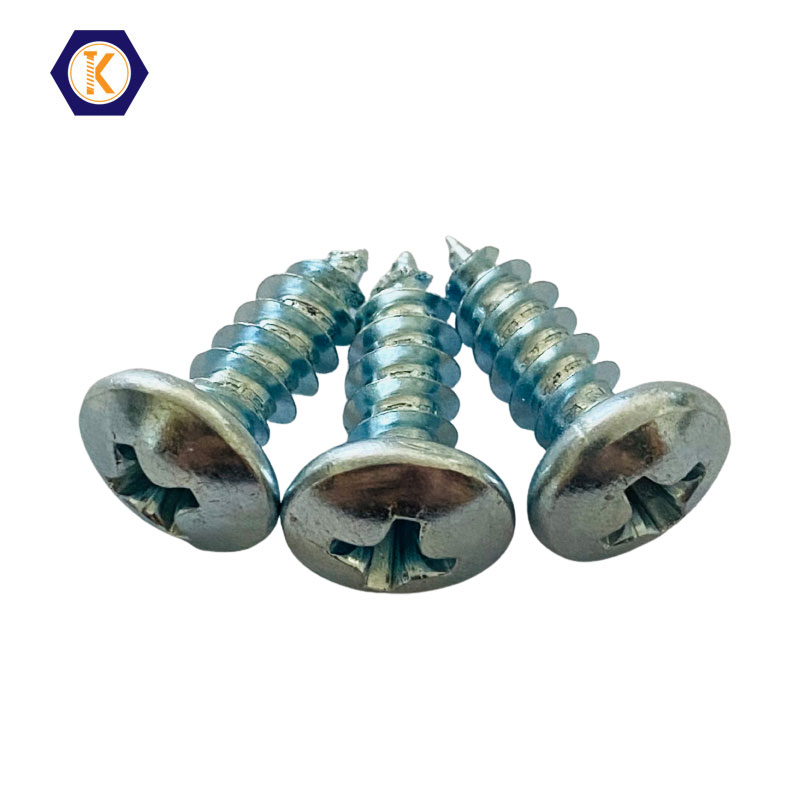

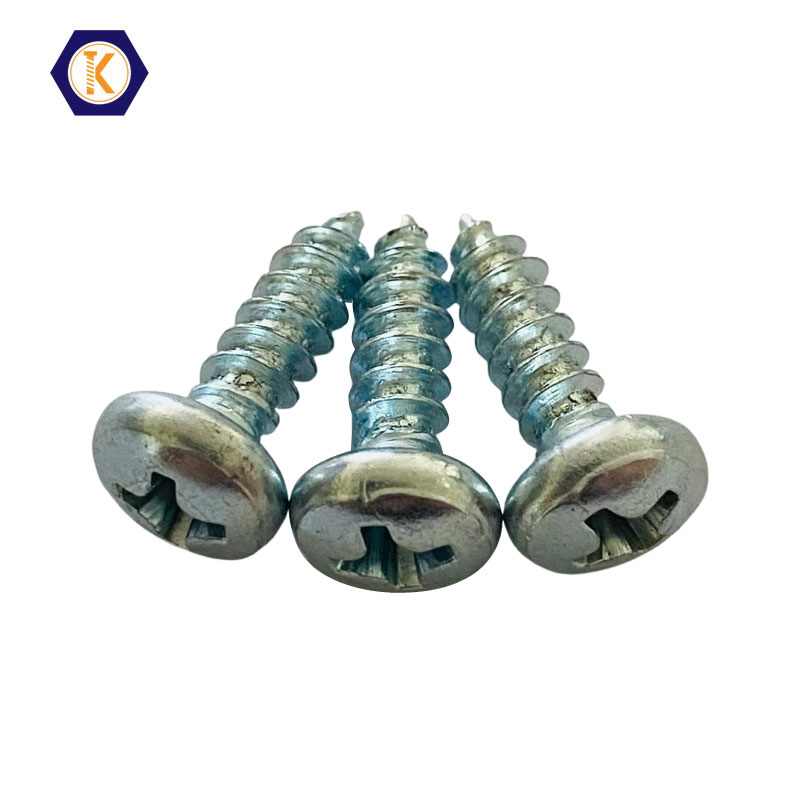

Product display of Pan Philip Head Self Tapping Screw Zinc Plated


PPan Philip Head Self Tapping Screw Zinc Plated product parameter

Type

Self Tapping Screw

Product Name

Pan Philip Head Self Tapping Screw Zinc Plated

Standard

GB/DIN/BSW/ISO/ANSI

Color

Blue,Black,Silver,Grey

Material

Carbon Steel(C1022A)

Surface Treatment

Zinc Plating,Nickel Plating

Phosphating,Chromium Plating

Head Style

Round

Head Type

Pan Head

Groove Type

Phillips,Torx

Point

Drill Point or Sharp Point

Size

M3-M6.3/#4-#14

Length

10-150mm

Roughness

Ra0.4-1.6

HS Code

7318140001

7318140090

7318151090

7318159001

7318159090

7415339000

8108909000

Nature

Threaded Fastener

Features

High Tension,Single Piece,

Single Side Combination

Application

Steel Plate Connection,etc

Discipline

Mechanical Engineering

Sample

Provide

MOQ

1000000Pieces

Transport Package

Bulk,Bag,Box,Plastic Barrel

Price

FOB Ningbo or Shanghai port

Payment method

T/T

Delivery Time

30-60days

Production Capacity

500Tons/Month

Origin

Zhejiang China

Support for Custom

OEM


Product advantages:

1. Use good quality material to ensure the quality

2. High quality coating and low roughness

3. Straight,not easy to broken

4. Sharp thread,good tapping

5. Stable quality

6. Fast production time


Instructions for the use of Pan Philip Head Self Tapping Screw Zinc Plated

During the assembly and disassembly of Pan Philip Head Self Tapping Screw Zinc Plated,slotted self tapping screws shall be provided with a slotted screw driver, cross recessed self tapping screws shall be provided with a cross shaped screw driver,Torx tapping screws shall be equipped with hexagon flower wrenches.


Packing method of Pan Philip Head Self Tapping Screw Zinc Plated


We usually use bulk,color box,Kraft carton,PC plastic box,PC plastic bucket,tray and other packaging methods.

Of course, customers can also customize.
